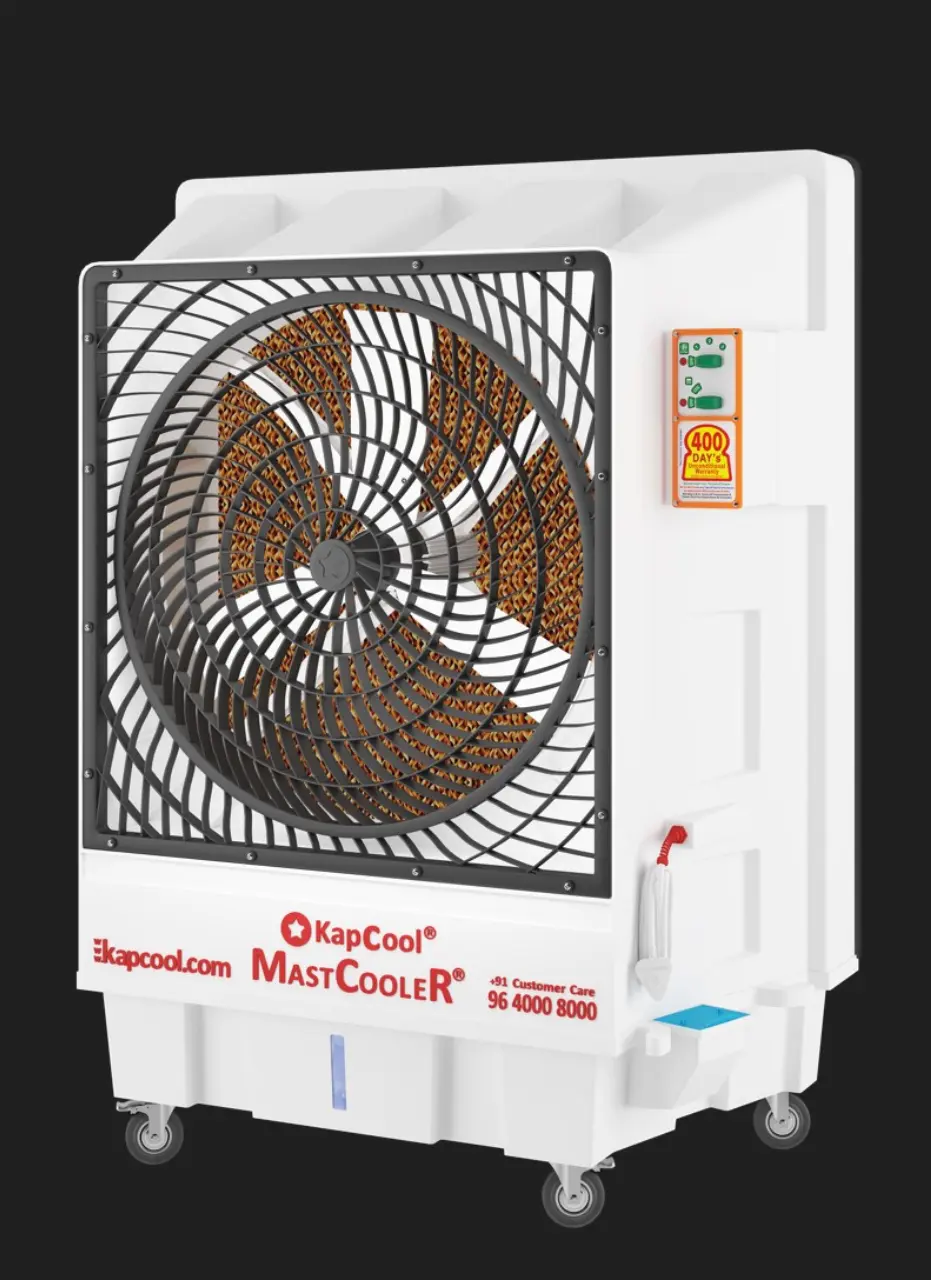

Kapcool MastCooler Black & White Protective Grill: Industrial Air Cooler with Protective Grill (up to 2500 sq ft)

MastCooler KK09PW

Request Quote

KEY FEATURES

Premium Knob Controls
Protective Front Grill
30-Inch Plastic Axial Fan
Coverage up to 2500 sq. ft.
Extended Cooling Pad Area

Benefits

Eco-friendly cooling
Energy efficient
Low maintenance
Fast cooling effect

TECHNICAL SPECIFICATIONS

PARAMETERS	VALUE
Motor Type	Single Phase, 3 Speed
Motor Rotation	900 RPM
Wattage	490W*
Fan Type	Axial Fan
Fan Noise	68 db
Front Panel	Grill (Fixed Direction)
Air Flow	18000* m³/h
Cooling Pad Size	1095 × 100 × 1180 mm
Gross Weight	KK09PW - 46 Kgs
	KK12PW - 48 Kgs
	KK20PW - 54 Kgs
Product Dimensions	KK09PW - 1130 × 600 × 1550 mm
	KK12PW - 1130 × 600 × 1680 mm
	KK20PW - 1130 × 600 × 1880 mm

* May vary based on operating conditions

TEMPERATURE EFFECT

Reduces ambient by 7° to 10°C

WARRANTY

400 Days Warranty

Ideal For:

Industrial workshops & manufacturing facilities
Commercial spaces & warehouses
Agricultural buildings & horse farms
Event venues & temporary structures
Large residential areas

Why Choose MastCooler (Grill) (B&W)?

The MastCooler (Grill) (B&W) model offers the perfect balance of cooling power and water efficiency. With its 90, 120, 200 Liters tank and powerful fan, it provides extended cooling for large spaces while maintaining energy efficiency.

Energy Efficient Long-lasting Durability Eco-Friendly

Installation Best Practices:

Place the unit near a window or door for optimal fresh air intake
Ensure adequate cross-ventilation in the space
Keep at least 2 feet clearance around the unit
Position on a level surface for proper water distribution
Consider elevated placement for more efficient air distribution in large spaces

Maintenance Tips

For optimal performance, clean the cooling pads every 2-3 months, drain and clean the water tank monthly, and check the pump filter regularly.

Maintenance Schedule

Weekly Check water level

Monthly Clean water tank

Quarterly Clean cooling pads

Model	Tank Capacity	Coverage Area	Front Panel	Gross Weight	Product Dimensions

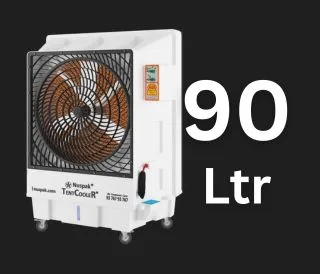

KK09PB/KK09PW	90 Liters	2500 sq. ft.	Grill (Fixed Direction)	46 Kgs	1130 × 600 × 1550 mm
KK09LB/KK09LW	90 Liters	2500 sq. ft.	Louver (Auto Swing)	51 Kgs	1130 × 705 × 1550 mm

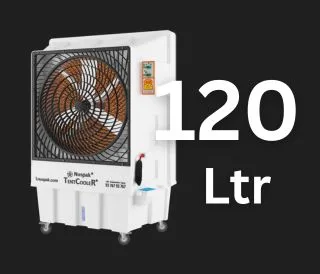

KK12PB/KK12PW	120 Liters	2500 sq. ft.	Grill (Fixed Direction)	48 Kgs	1130 × 600 × 1680 mm
KK12LB/KK12LW	120 Liters	2500 sq. ft.	Louver (Auto Swing)	53 Kg	1130 × 705 × 1680 mm

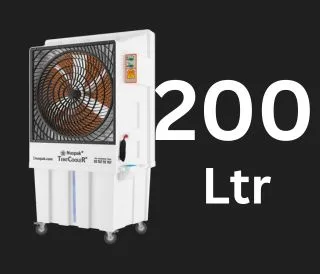

KK20PB/KK20PW	200 Liters	2500 sq. ft.	Grill (Fixed Direction)	54 Kgs	1130 × 600 × 1880 mm
KK20LB/KK20LW	200 Liters	2500 sq. ft.	Louver (Auto Swing)	59 Kgs	1130 × 705 × 1880 mm
